The One Series by NUDURA® is the industry’s only multi-link form offering unmatched versatility for projects designed using Insulated Concrete Forms. NUDURA's® One Series form allows the installer to easily create wall assemblies with an exposed concrete face on one side, while maintaining a layer of EPS insulation on the opposite side. The One Series features DURAMAX Technology™, the industry’s largest standard form on the market - 8 feet (2.4m) long by 18 inches (457mm) high placing 12 sq. ft. (1.11m2) of wall area in a single step.

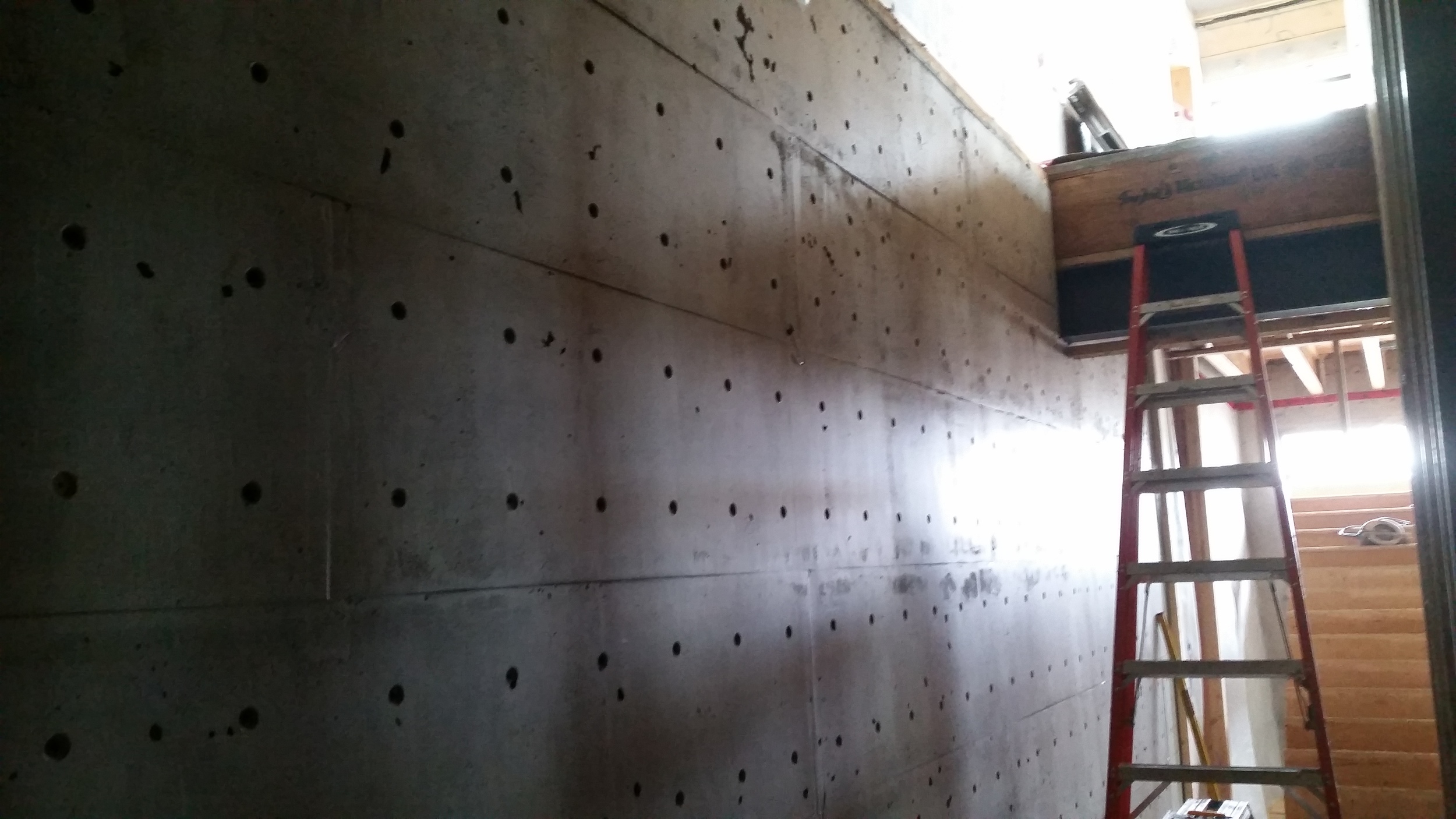

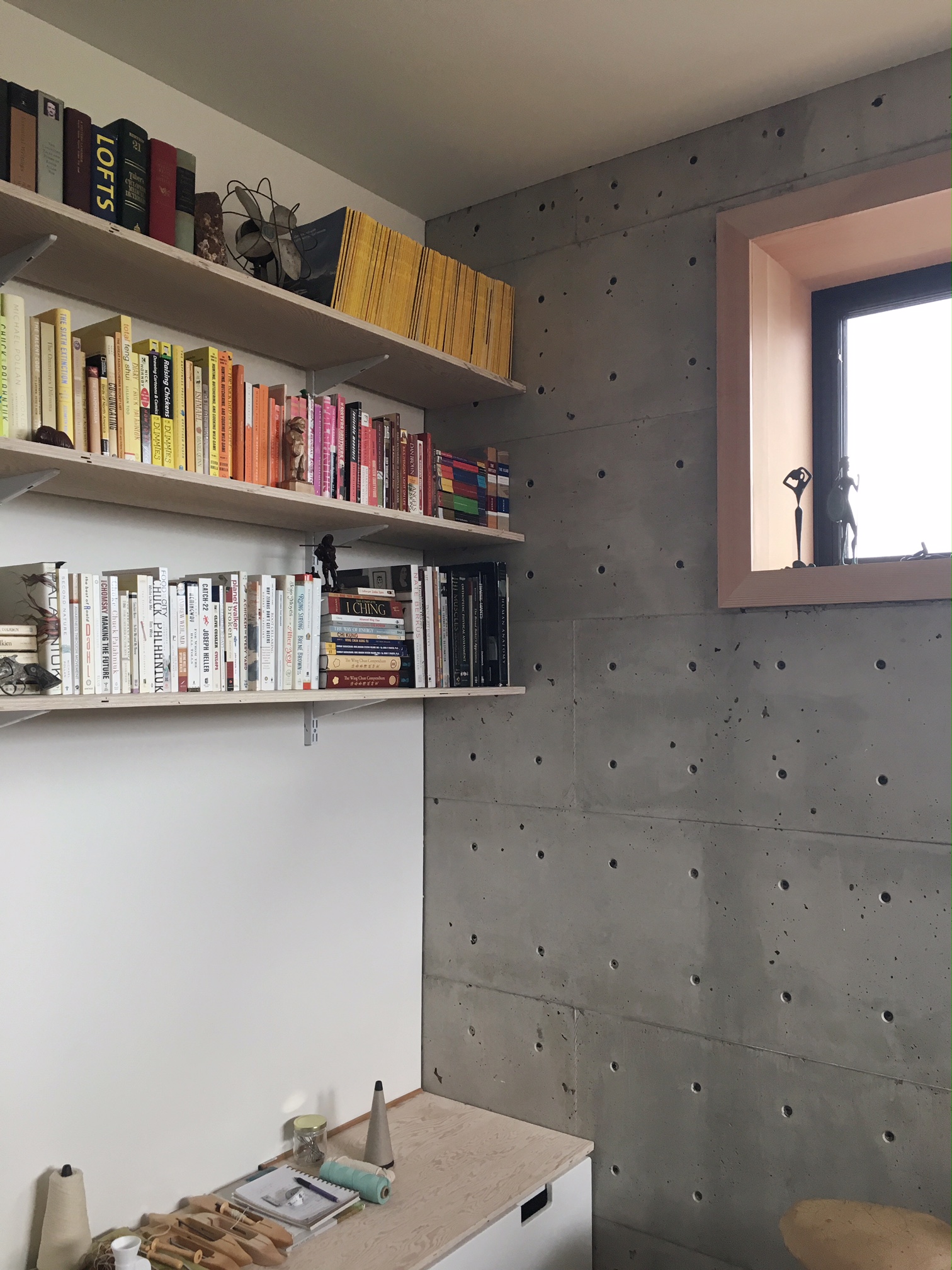

The One Series Form reduces labour by not having to strip foam for elevator shafts, stairwells and other areas that do not require insulation. For home builders, the One Series is ideal for swimming pools, architectural concrete walls, or applications when full access to thermal mass is desired. This innovative design features only two small connection points per web that can be easily covered over and hidden or left exposed for a symmetrical feature wall. The end result is a smooth interior or exterior surface.

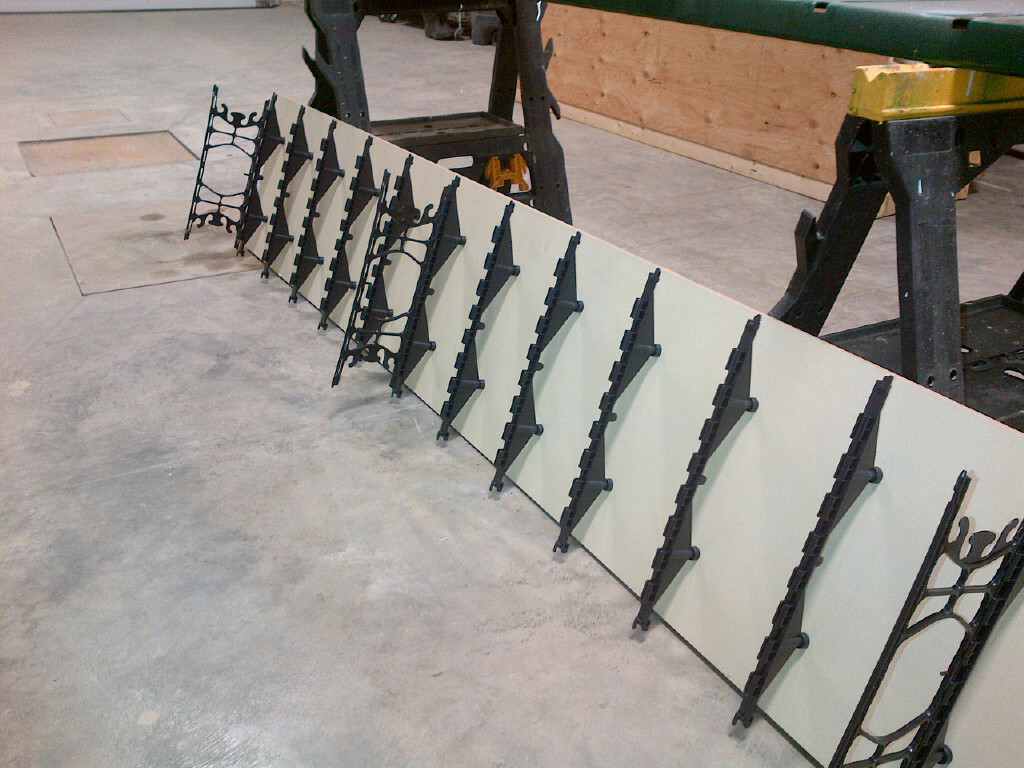

How does it work? The One Series combines traditional forming methods and ICF technology together. NUDURA supplies all of the materials necessary to complete the multi-link form: webs, form ply, screws and a specially designed jig to make assembly easy and fast. The form ply sheets are pre drilled - simply assemble to the desired form combination quickly and easily. NUDURA® One-Series can be used in conjunction with Standard Panels, Taper Top Forms, or Brick Ledge Forms as your job dictates. Once the job is completed all of the form ply panels can be stripped, cleaned and reused for the next job, eliminating waste and reducing cost.
Prairie ICF offers NUDURA Form Ply as a rental item if multiple projects are not planned. Contact our office to ask about designing your project with One-Series to reduce construction time and minimize waste.
